Toilet Rough-In

Toilet rough-in is the horizontal distance from the finished wall surface behind a toilet to the center of the toilet drain (flange) in the floor. This measurement determines which toilet models will fit in the space — the toilet's trap outlet must align with the floor flange, so a toilet with a 12-inch rough-in distance will not correctly seat on a 10-inch rough-in and vice versa.

What are the standard rough-in sizes?

• 12 inches (most common): the standard for virtually all new construction in North America since the 1950s. The vast majority of toilets sold are designed for a 12-inch rough-in.
• 10 inches: found in older homes, especially pre-WWII construction, and in smaller powder rooms where plumbing was shoehorned in. Requires a 10-inch toilet (shorter bowl depth, sometimes limited model selection).
• 14 inches: rare, found in some pre-1940s homes with oversized bathrooms. Requires a 14-inch toilet or an offset flange to adapt to a standard-size toilet.

How do you measure your rough-in?

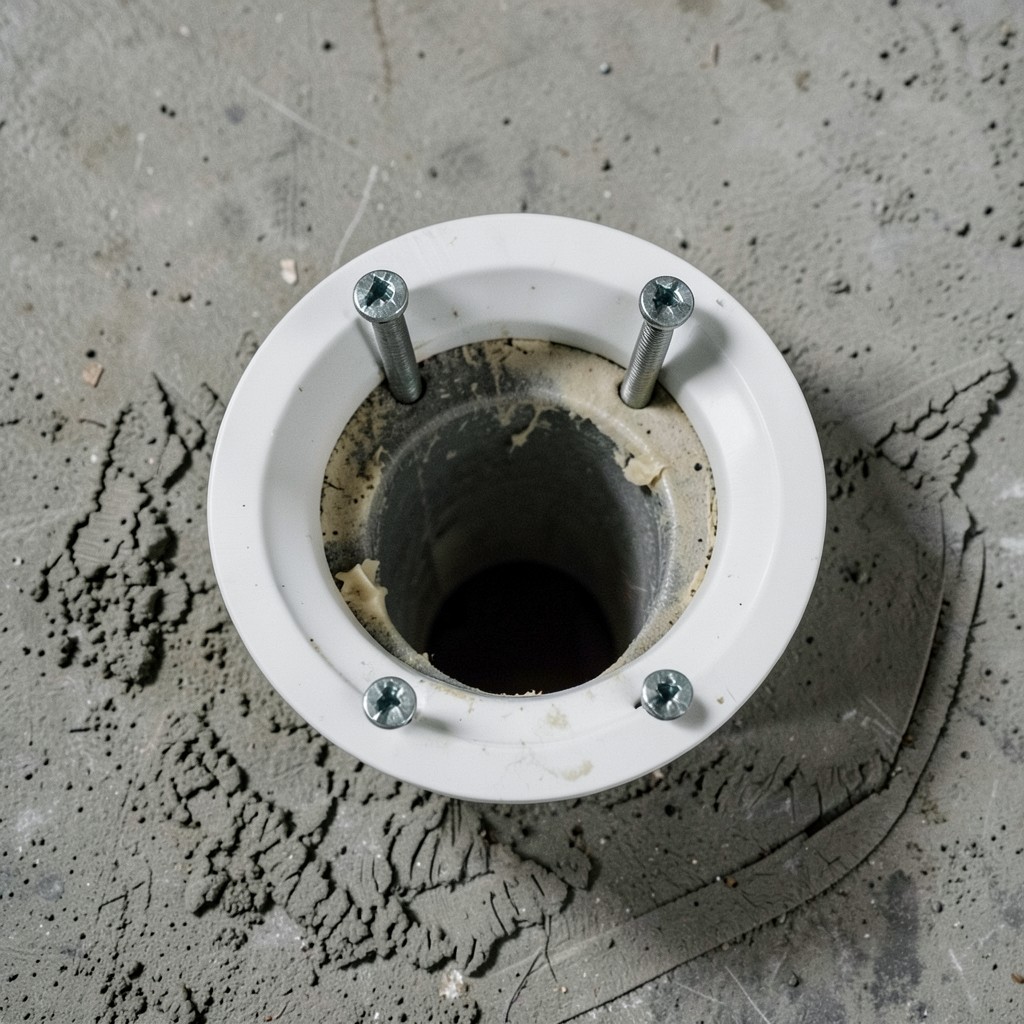

Remove the toilet if replacing (or look at the existing one if present): measure from the finished wall (not the baseboard) to the center of the two closet bolts on the floor flange. If the old toilet is still installed: measure from the wall to the center of the toilet's hold-down bolts, which align with the flange center.

What happens if you buy the wrong rough-in size?

Selecting a 12-inch toilet for a 10-inch rough-in: the bowl overhangs the wall — the toilet doesn't sit flush and may not seat on the flange at all. Selecting a 10-inch toilet for a 12-inch rough-in: a gap appears between the tank and wall — cosmetically unappealing, though the toilet functions. The correct solution is always to match the toilet to your rough-in, or to use an offset flange (which adjusts the flange position by 1–2 inches) if a matching toilet isn't available.
