Sump Pump

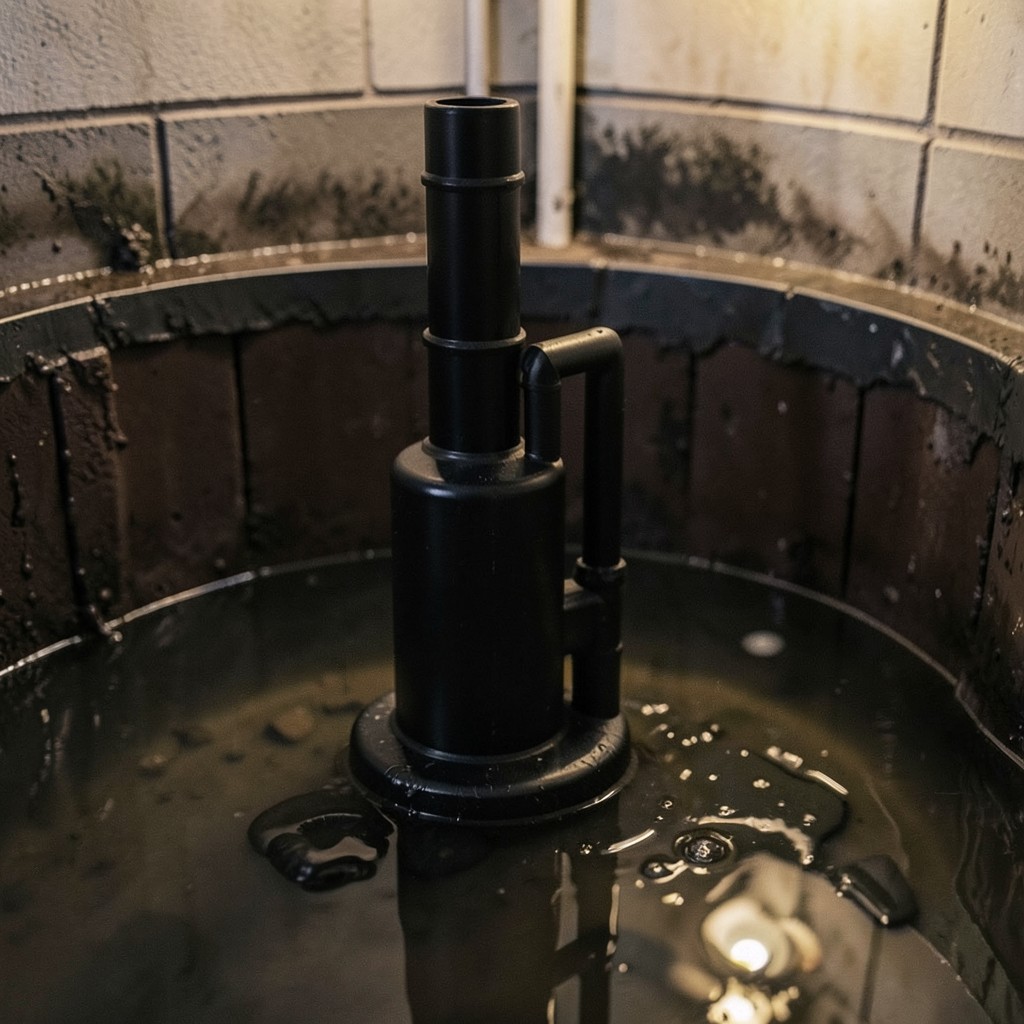

A sump pump is a centrifugal pump installed inside a sump basin (a pit cut into the lowest point of a basement or crawlspace floor) that activates automatically when groundwater rises to a set level. The pump discharges water through a vertical pipe, past a check valve, and out beyond the foundation through a drain line. Sump pumps are the primary defense against basement flooding in homes with high water tables, perimeter drain tile, or seasonal storm runoff.

When is a sump pump needed?

The 2024 IRC and most local codes require a sump in any below-grade habitable space served by an interior foundation drain, and FEMA recommends one in any home located in a 100-year floodplain or with a history of seepage. Battery or water-powered backup pumps are required by some municipalities for finished basements and are strongly recommended anywhere that loses power during the same storms that cause flooding.

What are the signs of sump pump failure?

• Pump runs continuously or short-cycles (stuck float switch or undersized pit)
• Pump hums but does not move water (jammed impeller or closed check valve)
• Loud rattling or grinding (worn bearings, debris in volute)
• Water in the basement after a storm with no audible pump activity (failed motor or tripped breaker)
• Backflow into the pit after the pump shuts off (failed check valve)
• Visible rust on the discharge pipe or pump body

What does sump pump installation cost in 2026?

A primary submersible pump in the 1/3 to 1/2 HP range runs $200 to $700 installed, depending on horsepower, switch type (tethered float vs. vertical electronic), and whether a new pit, discharge line, or check valve is needed. Battery-backup systems with a sealed AGM battery and DC pump add $300 to $600. Water-powered backup units, which run off municipal pressure, cost $400 to $900 installed but require a backflow preventer and are restricted in some jurisdictions. A full system replacement (primary + backup + new check valve + discharge piping) typically falls between $900 and $1,800.

What code applies to sump pump discharge?

Sump pump discharge sizing, check-valve placement, and discharge termination are governed by IRC Section P3303 and IPC Section 1113. Discharge must terminate outside the building and may not connect to the sanitary sewer in most jurisdictions.
