Overflow Tube

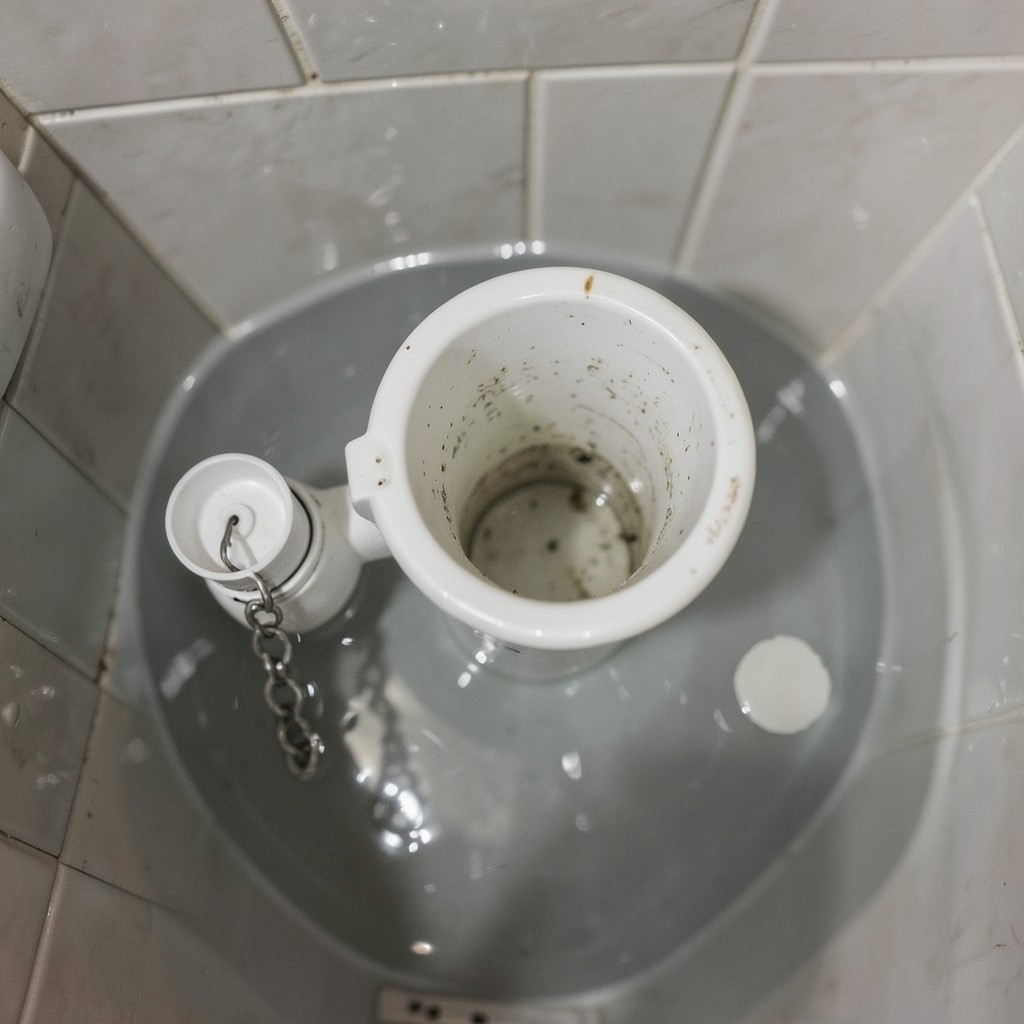

The overflow tube (also called the overflow pipe or fill tube drain pipe) is the tall, open-topped standpipe in the center of the toilet tank. If the fill valve fails to shut off and the water level rises too high, water flows over the top of the overflow tube and drains directly into the toilet bowl rather than overflowing the tank and flooding the bathroom. It's a passive safety feature built into every toilet tank.

How it functions

The overflow tube connects the tank to the toilet bowl through the flush valve at the bottom. Normally, water in the tank sits below the top of the overflow tube — the fill valve shuts off when the water reaches the correct level. If the fill valve fails open or its float gets stuck, water continues rising. When it reaches the rim of the overflow tube, gravity draws it down through the tube into the bowl, where it exits through the toilet drain. This prevents an uncontrolled overflow but allows the fill valve to run continuously — a silent water waster that can add hundreds of dollars to water bills over time.

Diagnosing overflow tube issues

• Water level too high (constantly running): if water is running into the bowl through the overflow tube, the water level in the tank is set too high. Adjust the fill valve float downward — the water level should sit ½–1 inch below the top of the overflow tube. Mark the correct water line on the tank interior with a grease pencil.
• Fill tube positioned incorrectly: a small fill tube clips from the fill valve to the top of the overflow tube, directing a small flow into the bowl during refilling to refill the bowl trap. If this tube is submerged in the tank water, it creates a continuous siphon that slowly empties the tank — reposition it to direct flow into the tube opening above the water level.

Overflow tube vs. toilet flapper

Both allow water to leave the tank — but the flapper releases water intentionally (flush), while the overflow tube releases water only when the water level is too high (fill valve failure). If your toilet runs, check which route the water is taking: dripping into the bowl from the flapper area = flapper issue; running audibly into the bowl with no flush = water level is too high and overflowing the tube.
