Expansion Tank

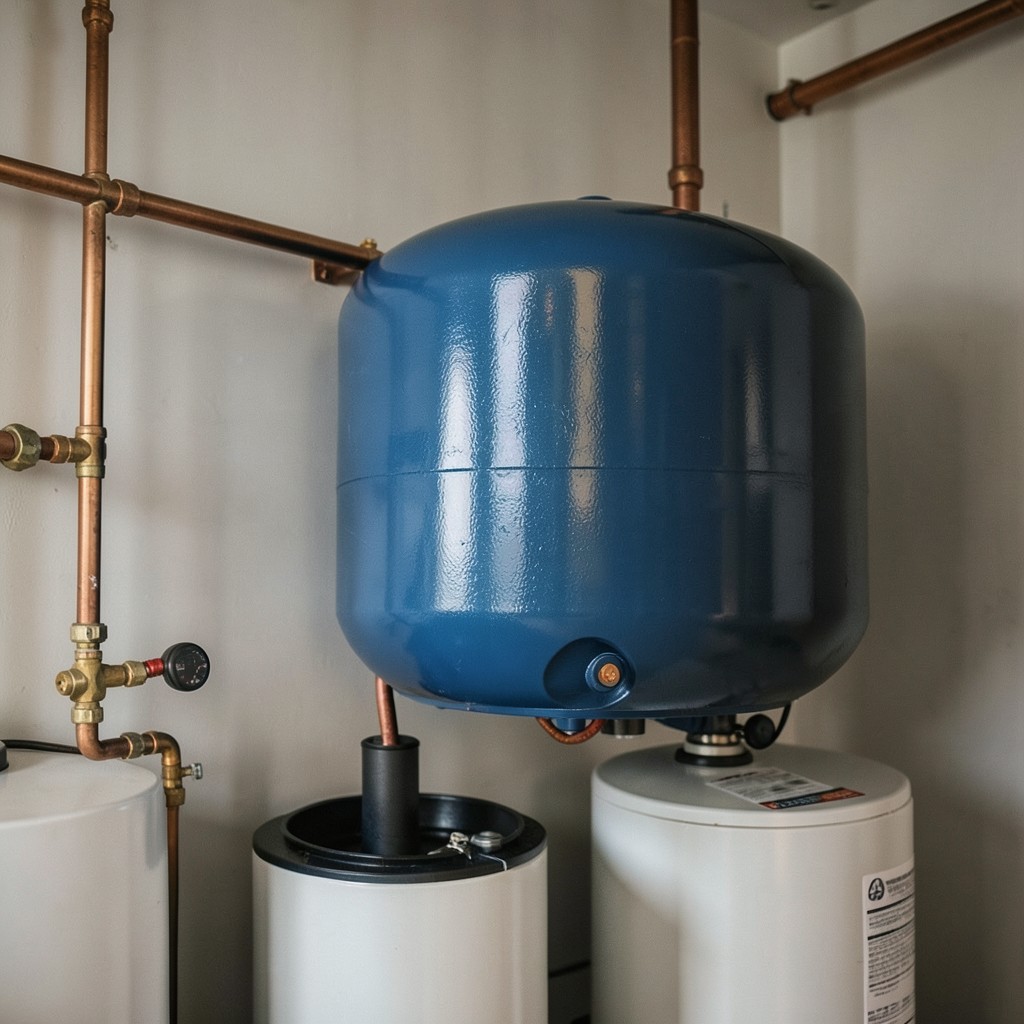

A thermal expansion tank is a small steel tank, typically 2 to 5 gallons in residential use, that is plumbed into the cold-water supply line near the water heater. Inside is a rubber or butyl bladder pre-charged with air. When water in the tank is heated, it expands by roughly 2 percent in volume; in a closed plumbing system (one with a check valve, backflow preventer, or pressure reducing valve preventing reverse flow into the main), that expanded water has nowhere to go and pressure can spike well above 150 psi. The expansion tank gives that water a place to expand into, holding the system within safe operating pressure.

When an expansion tank is required: The IRC requires a thermal expansion control device on any water-heater installation served by a closed system. In practice, this means almost any home with a PRV, a backflow preventer on the service, or a one-way check valve at the meter. Many municipal water authorities began installing service-line check valves in the 2000s, which converted millions of previously open systems into closed ones, making expansion tanks effectively universal on water-heater replacements in those jurisdictions.

Failure symptoms:

• Water dripping or weeping from the water-heater T&P relief valve
• Pressure spikes above 80 psi when the heater fires
• Tank feels waterlogged (heavy, with no air cushion when tapped)
• Visible rust, corrosion, or moisture at the tank inlet fitting
• Tank fails the air-charge test (Schrader valve reads 0 psi or much less than house static pressure)
• Banging or popping noises from the water heater during recovery

2026 install and replacement cost: A standard 2-gallon residential expansion tank for a 40- to 50-gallon heater runs $150 to $350 installed, including the tank ($45 to $120), a tee, dielectric union or brass adapter, and labor (typically under an hour when done alongside a heater install). A 4.5-gallon tank for an 80-gallon heater or for hydronic use runs $250 to $500 installed. Tanks should be pre-charged to match house static pressure (usually 50 to 60 psi) before being put in service. Service life is roughly 5 to 10 years.

Code reference: Thermal expansion control is required by IRC Section P2903.4 and IPC Section 607.3. Tank construction must conform to ANSI Z21.22 / ASME standards for water-heater accessories.
